F3-M34-F Uso wa kutazama kwa umbali mrefu Usogeleaji wa joto wa kupima joto

F3-M34-F Uso wa kutazama kwa umbali mrefu Usogeleaji wa joto wa kupima joto

F3-M34-F inafaa kwa maeneo ya ofisi, hoteli, majengo ya ofisi, shule, maduka, jamii, huduma za umma na miradi ya usimamizi.

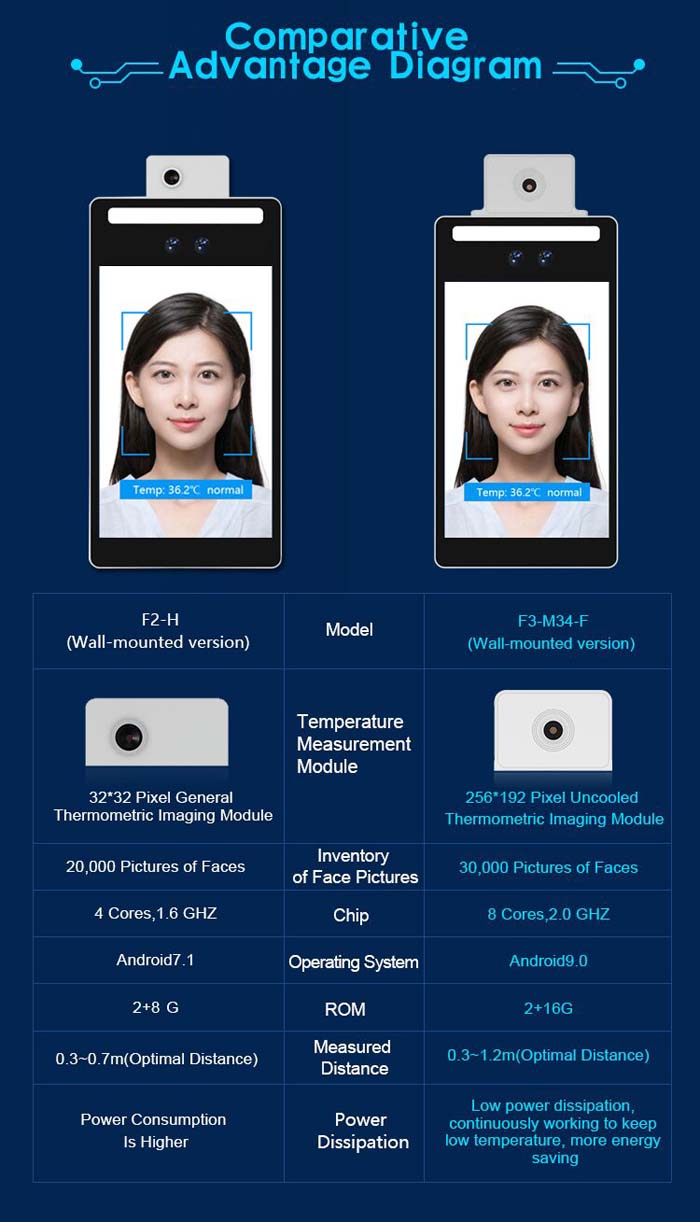

Uliza Sasa Kifaa cha Kupima joto cha F2-H Joto la kipimo cha joto la

Maelezo ya bidhaa

Manufaa ya bidhaa

* Bodi ya MTK Ili Kuunga mkono Kasi ya haraka;

* Kutumia Kamera ya 256 * 192 High Azimio la Kuingiza mafuta, Kuunga mkono RGB;

* Umbali wa Upimaji mrefu: 0.3-1.2m

Vipengee vya Bidhaa

* Ugunduzi wa nguvu, suluhisha udanganyifu wa picha kwenye wabebaji mbalimbali

* Kupitisha kugundua kwa nguvu ya uso na kufuatilia algorithm ya utambuzi kulingana na mkondo wa video

* Msaada wa kuhifadhi maktaba 30,000 ndani

* Msaada wa bandari ya serial ya RS232, pato la Wiegand 26, usanidi wa msaada wa yaliyomo ya pato

* Kusaidia mtandao wa umma na mtandao wa eneo lako

* Msaada wa kiunganisho cha HTTP interface;

* Support screen kuonyesha yaliyomo usanidi, kuonyesha hali, kuonyesha desturi kuonyesha, yaliyomo desturi matangazo

* Utambuzi wa haraka:

Ing Ufuatiliaji wa uso na kugundua inachukua 20ms

（B） Mchanganyiko wa kipengele cha uso huchukua 200ms

（C） Ulinganisho wa uso wa kugundua unachukua 0.6ms (maktaba ya watu 1000, thamani ya wastani ya kutambuliwa nyingi), 0.8ms (maktaba ya watu 10000, thamani ya wastani ya kutambuliwa nyingi)

* Urefu wa Utambuzi :: 1.2-2.2m

* Kiwango cha kugundua: 1-2sec / wakati wa mtu

* Usahihi: ± 0.5 ℃

Product Parameters

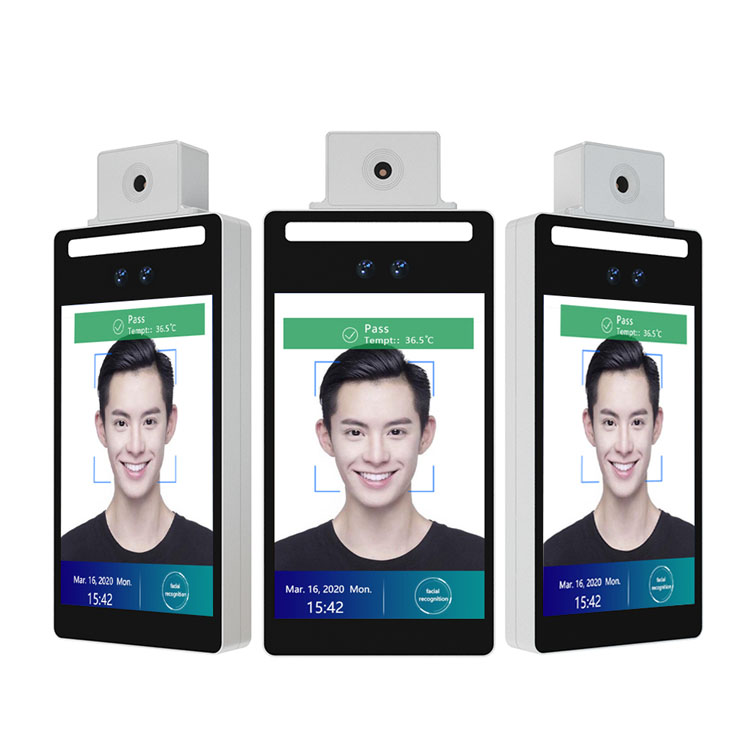

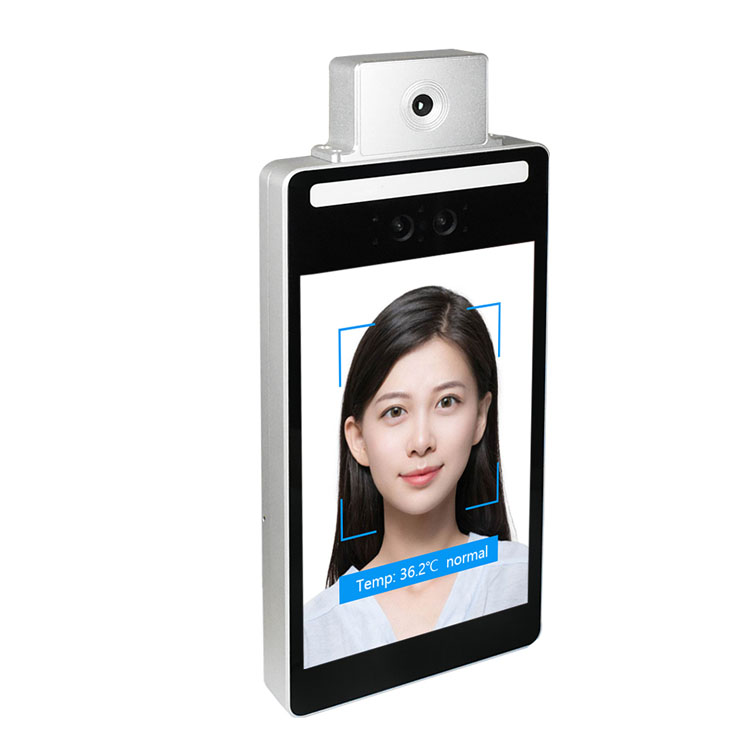

F3-M34-F Face Recognition Access Control Terminal
Model No.		F3-M34-F
Display		8 inches, Full Viewing Angle, 170IPS LCD Screen
Screen Resolution		800*1200
Camera	Type	RGB	Thermal Imaging
	Resolution	2 Million Pixels	256*192
	Aperture	F2.8	F2.8
	Focal Length	3.18mm	3.18mm
	White Balance	Automatic	Automatic
	Wide dynamic	Support	Support
	Vertical Wide Angle
	Horizontal Wide Angle
Basic Specification	Operating System	Android9.0 or above
	Power Supply	DC12V(±10%)3A
	Power Consumption	15w MAX
	Relative Humidity	0%¨ 90%（In the State of Non-condensing Drops)
	Operating Temperature	5℃-50℃

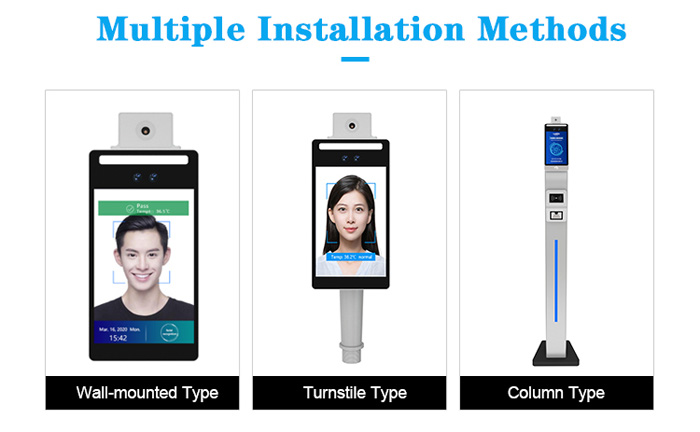

	IP Grade	IP55（Wall Mounting, Water is Not Allowed at the Junction with the Outlet Box, and a Ceiling Can Be Added）
	Working Environment	Indoor and Outdoor (with sunshade) Environment (no wind and direct sunlight)

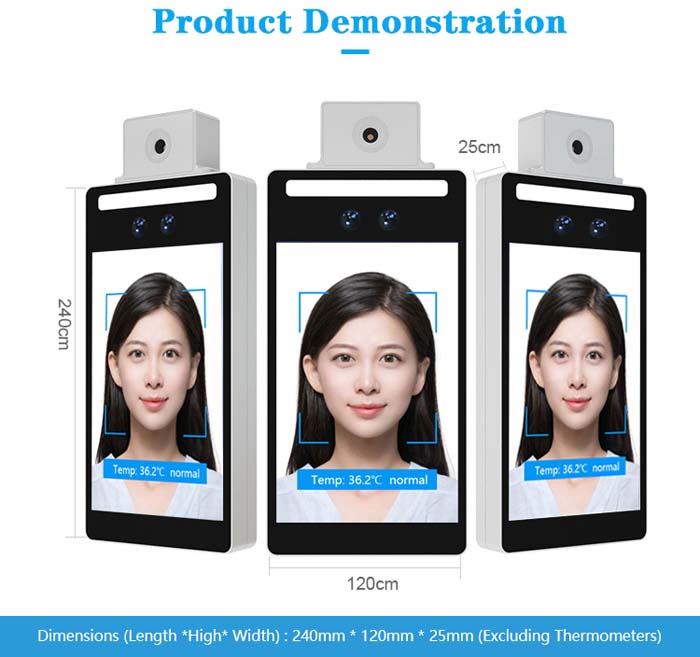

	Size	275.2MM123.2MM30.2MM
Hardware Configuration	Recognition Method	¨ ¨Face Recognition
		¨ ¨Mifare Card（Optional)
		¨ ¨IC Card（Optional)
	Face Recognition Parameters	¨ ¨Face Verification Accuracy >99%
		¨ ¨Face Recognition Distance 0.5m-1.5m
		¨ ¨Card Verification Time 600MS
		Local Storage 30000 faces
	Interface	Micro USB 1pc
		RJ45 Gigabit Network 1pc
		Relay Output
		Wiegand Interface
		RS-232
		Door Contact
		Exit Switch
		Power Supply
	White Fill Light	Support
	Indicator Light	Support Green Light for Authentication Success and Red Light for Authentication Failure
	Speaker	Dual Speakers, 1.0w
	Microphone	Non-noise Reduction
Basic Parameters	WIFI	2.4G 802.11b/g/n
	Bluetooth	BluetooH 4.0
Temperature Measurement Module	Operating Temperature	5℃ ~ +50℃
	Operating Temperature	-20℃ ~ +55℃
	Power consumption	< 0.3w
	Pixel	256*192 Real-time Temperature Output
	Measurement Accuracy	± 0.5℃
	Measuring Distance	0.3 ~ 1.0m
MTK Motherboard	Chip	Octa-core A73
	Operating System	Android9.0
	RAM	2GLPDDR4
	Storage	16GB eMMC
	Power Input	12V/2A
	Display	MIPI DSI Maximum Support Resolution 2400 * 1080
	WIFi	2.4GHz and 5GHz;802.11a/b/g/n/ac
	USB	Micro USB Type A Host1;Micro USB Type A Device1 USB 2.0 Host*2(1.25mm wafer)
	Microphone	2W*2 Speaker output
