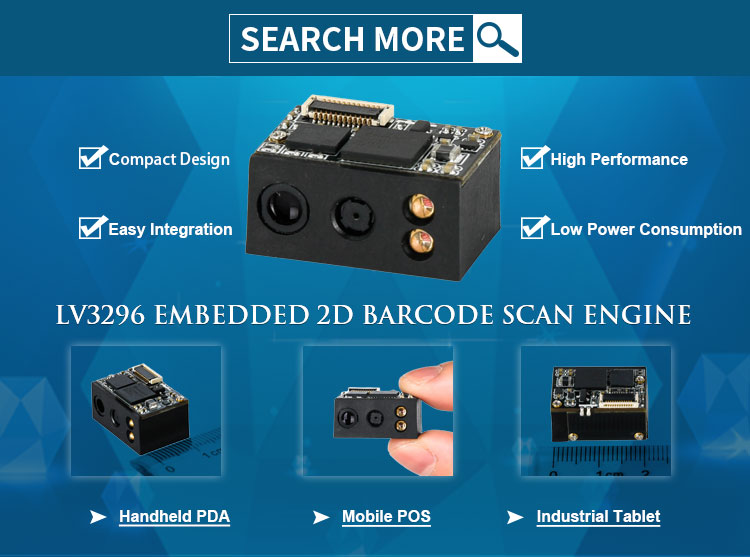

LV3296 2D Barcode Scanner Moduli

LV3296 inaunga mkono 1D zote za kawaida pamoja na barcodes 2D ikiwa ni pamoja na PDF417, QR Code (QR1 / 2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Kichina Msikivu Code.This injini compact weighs tu 5 gramu na inafaa kwa urahisi hata katika vifaa vingi vya kuzuia nafasi kama vile watoza data, wasomaji wa mita, vibali vya tiketi na PDA.

Uliza Sasa Bidhaa inayofuata

Maelezo ya bidhaa

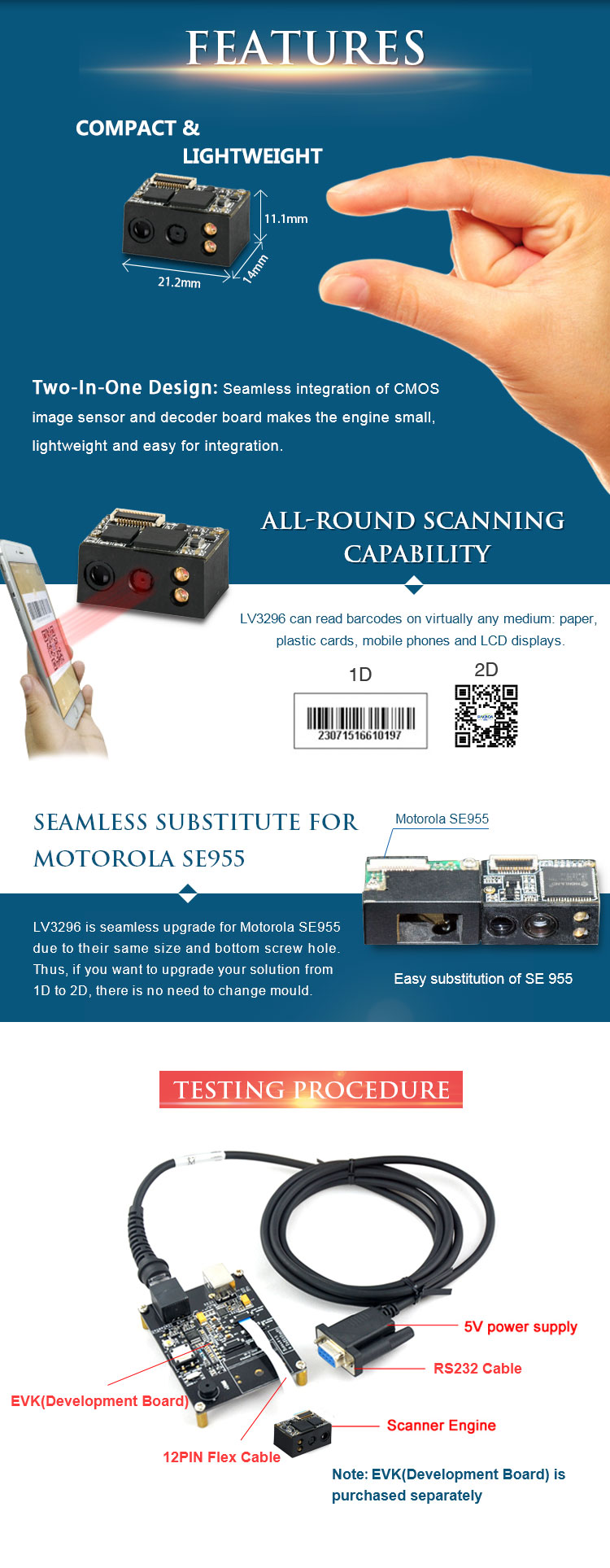

Features Bidhaa:

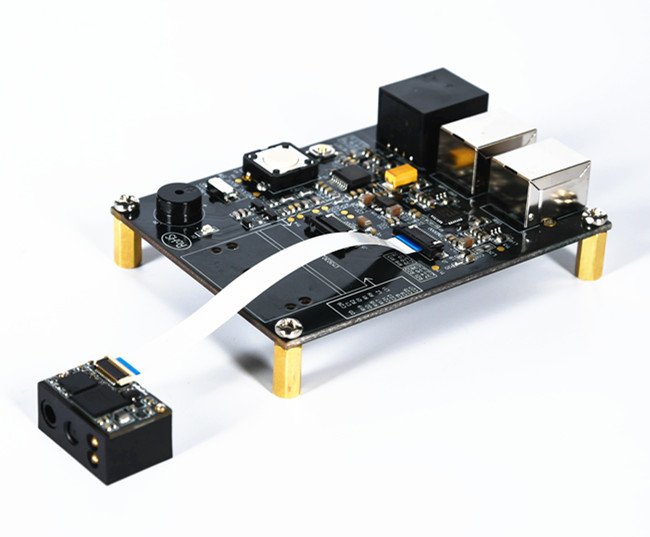

1. Multi-Interface

LV3296 inasaidia USB na TTL-232 interfaces ili kukidhi mahitaji mbalimbali ya wateja.

2. High-endTechnology

Ilijengwa na kizazi cha tano cha teknolojia ya Rakinda, injini ya scan inaweza kufahamu hata barcodes bora kwa urahisi.

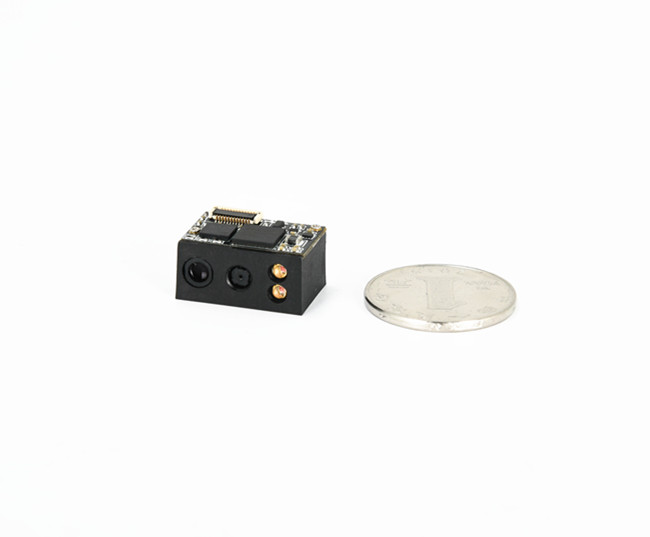

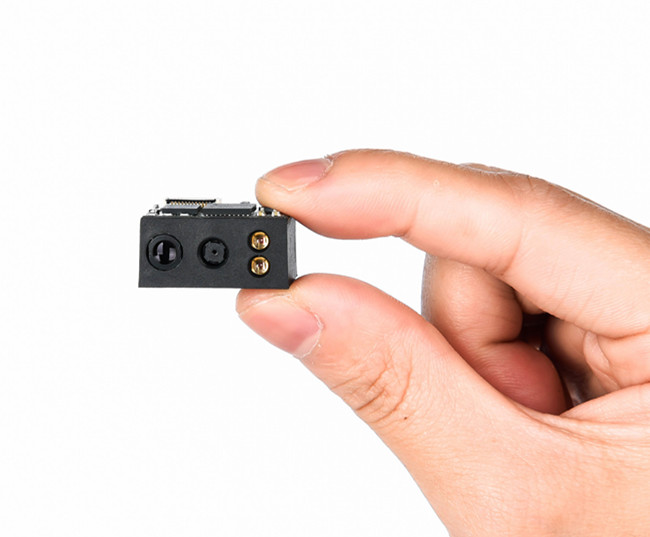

3. Kidogo na Ultralight Factor Factor

Ultra-compact, light and integrator-friendly, LV3296 hupata mahitaji ya miniaturization ya maombi ya OEM.

4.Kufanisi zaidi ya Nguvu

Teknolojia ya juu iliyoingizwa katika injini ya scan husaidia kupunguza matumizi ya nguvu na kuongeza muda wa maisha ya huduma ya kifaa.

LV3296 2D Barcode Scanner Moduli

Product Specifications:

Interface	TTL-232, USB (optional)
Image Sensor	752×480 CMOS
Symbologies	2D: PDF 417, DataMatrix(ECC200,ECC000,050,080,100,140), QR Code 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Illumination	Red LED 625±10 nm
Resolution	≥ 5mil
Ambient Light	0 ~ 100,000 LUX
Power Consumption	0.76 W
Operating Voltage	3.3±10% VDC
Current @ 3.3 VDC	Operating Current 230 mA Standby Current 4mA (USB communication not supported); 7mA (USB communication supported) Sleep Current <5 uA

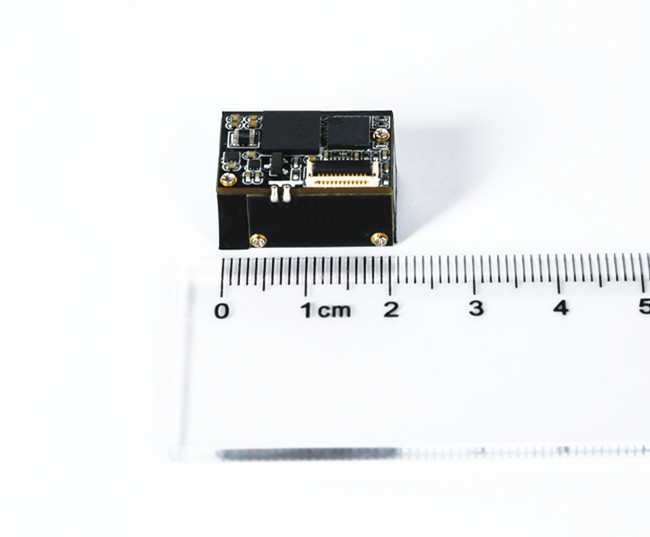

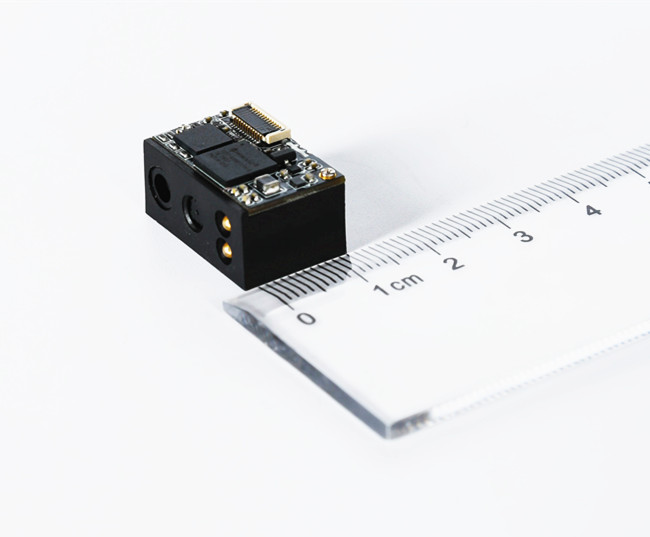

Dimensions	21.17(W)×14.6(D)×11.52(H)mm
Weight	5.0g
Operating Temperature	-20℃~ +60℃
